U60

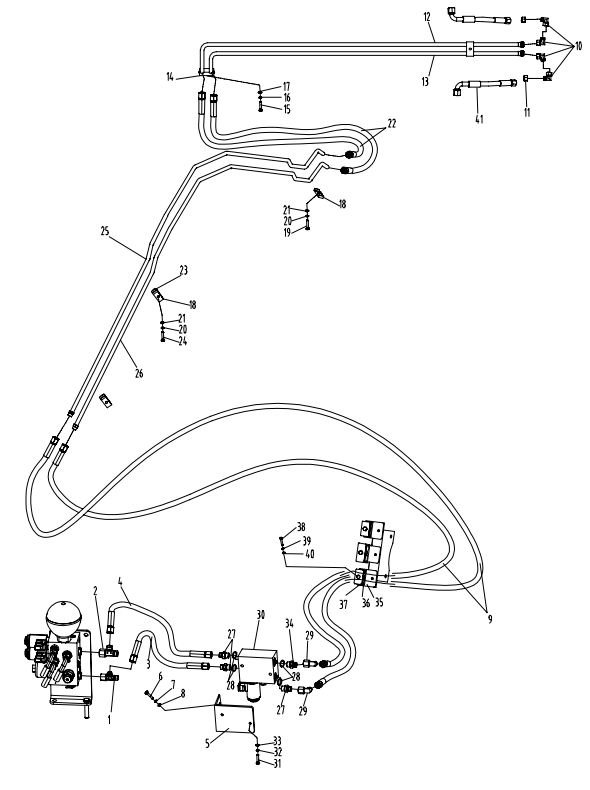

Yuchai U60
1. 870-8500003 Tee joint
2. 850-8502000 Tee joint
3. 505-9541000 Hose assembly
4. 805-6512000 Hose assembly
5. U60A1-6503001 Yoke
6. 0206-001000020-65 Bolt
7. 0401-010-05 Spring washer
8. 0404-010-05 Washer
9. U60A1-6503020 Hose assembly
29. 810M-0500002 Square joint
11. 526A-1502005 Internal thread plug
12. U60A1-6503140 Steel tube assambly
13. U60A1-6503130 Steel tube assembly
14. 870-9500015B Tubing clip
15. 0206-000600016-65 Bolt
32. 0401-006-05 Spring washer
33. 0404-006-05 Washer
18. U60A1-6503101 Tubing clip
19. 0206-000600025-65 Bolt
22. U60A1-6503170 Hose assembly
23. U60A1-6503180 Tubing clip
24. 0206-000600050-65 Bolt
25. U60A1-6503150 Spring washer
26. U60A1-6503160 Washer
27. 860A-8500003 Bolt joint
28. 0604-001080240-30 O seal ring
30. E50A2-0508000 Valve
31. 0206-000600060-65 Bolt
34. 820-7500009 Bolt joint
35. U60A1-0500340 Plate
36. U60A1-0500320 Tubing clip
37. U60A1-0500321 Plate
38. 0206-000800050-65 Bolt
39. 0401-008-05 Spring washe
40. 0404-008-05 Washer
41. 522-9525000 Hose assembly
